3D-Joystick

This is the physical controller for my virtual camera

A first prototype - August 2005

It’s a MIDI-Controller right now, but should get it’s own USB Interface in the futer to communicate like any other joystick as a HI Device…

Documentation is still very scarce, I will follow up documents as soon I’ve got time - for now, here are some photos…

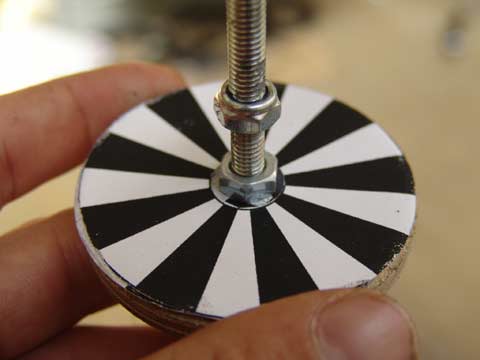

This is the wheel for the rotation sensor

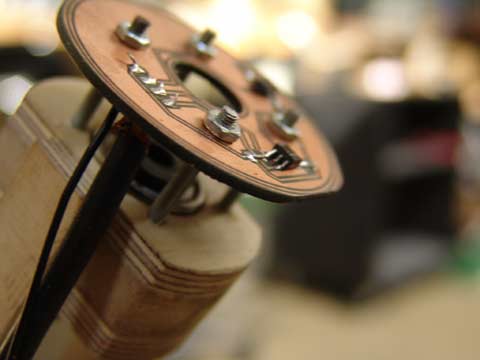

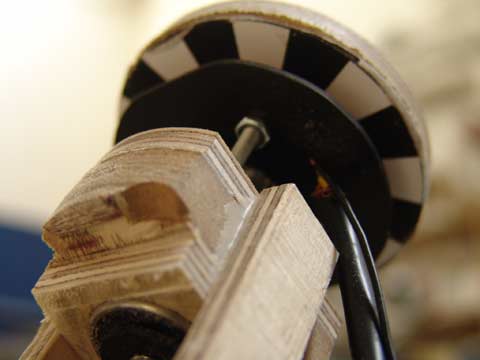

The mounted rotation sensor

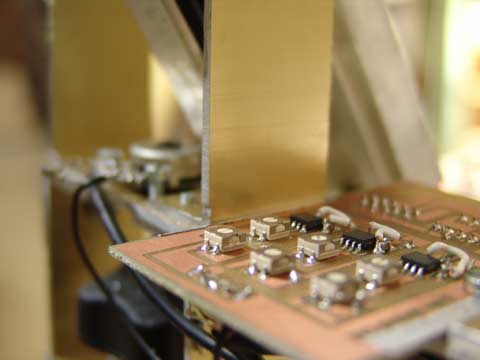

preamplifiers for the three axis sensors (12bit) mounted on the main fixture

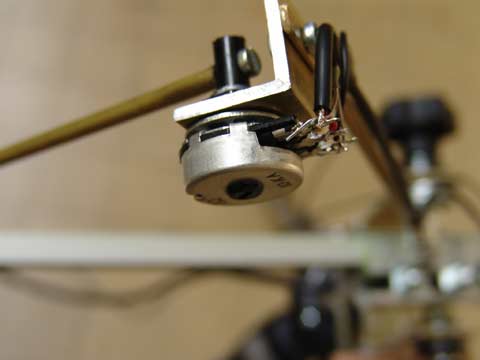

The zoom/z-axis sensor
