For the last two days I’ve been building the flight cases for the 3 videobass and 3 “amplifiers” with my father who helped a lot.

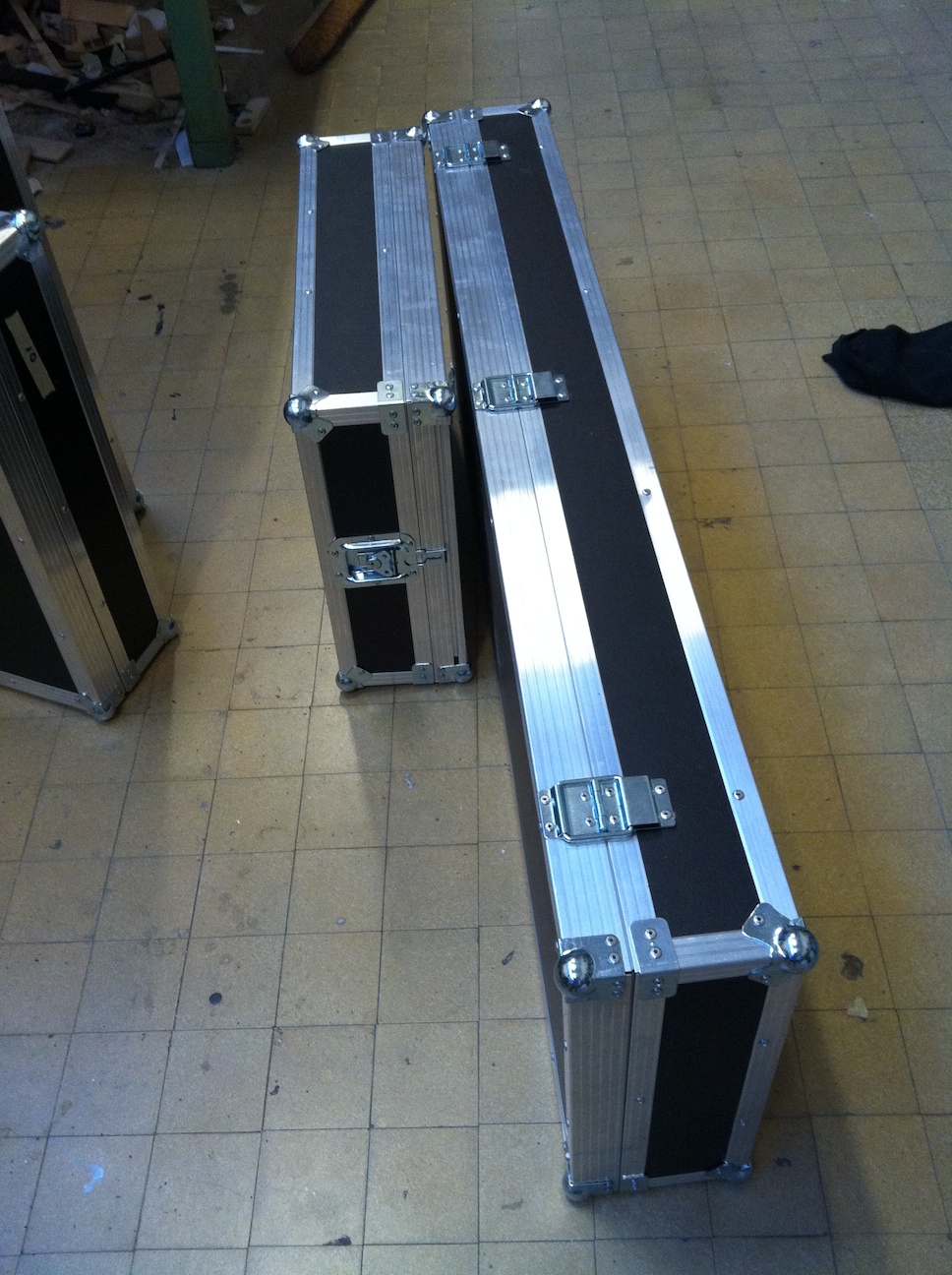

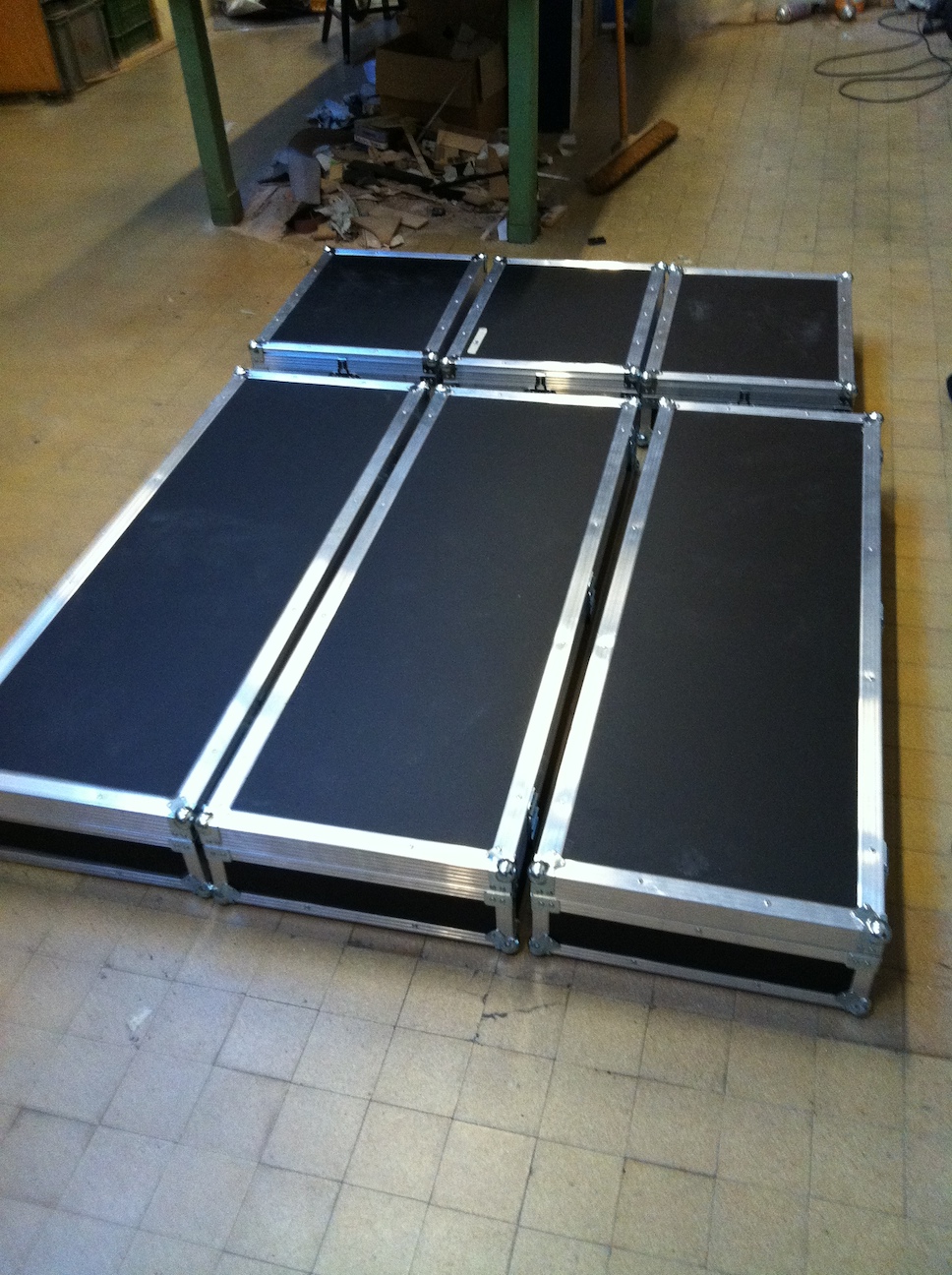

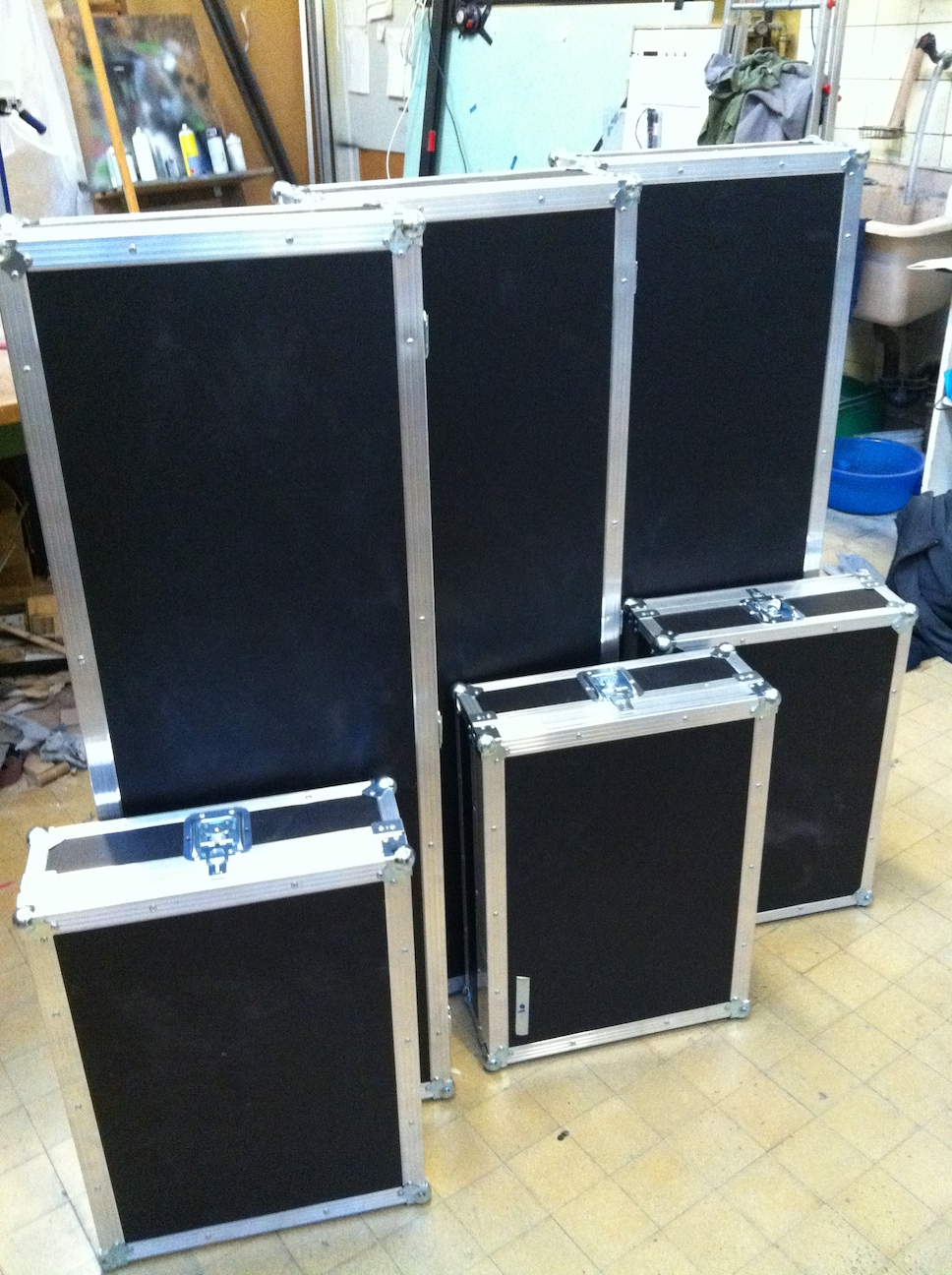

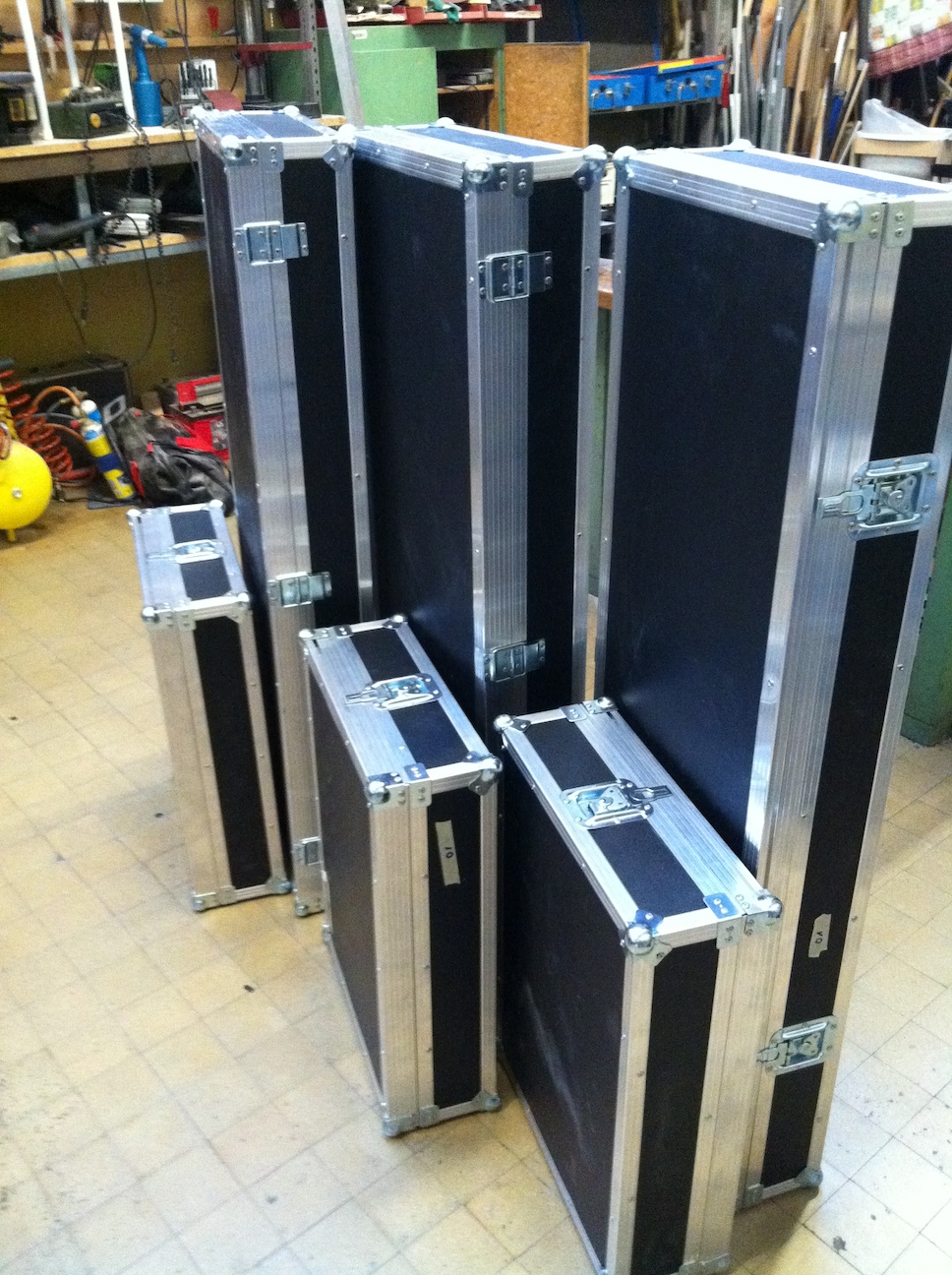

We were so busy that I completely forgot to take pictures of the process. But the result is very nice:
I really like the fact that we managed to have similar dimensions for both cases – they differ only in their length. Apart from the looks, this simplified the building process as well – there are less numbers to keep in mind, and therefore less possibilities for errors…
Material:
Videobass Case
Polypropylene sheets (7mm)
- 2 sheets 118cm x 39 cm
- 2 sheets 39cm x 9.5cm
- 1 sheet 118cm x 9.5cm
- 2 x 22cm x 9.5 cm
- 1 x 67cm x 9.5cm
Aluminum profiles
- 2 x 120 cm Casemaker
- 2 x 41cm Casemaker
- 2 x 6.6cm Casemaker
- 2 x 120cm Lid hybrid
- 2 x 41cm Lid hybrid
- 1 x 120 cm Lidmaker with slot
- 1 x 120 cm Lidmaker without slot
- 2 x 41 cm Lidmaker without slot
Fittings
- 8 ball corners
- 4 small corner brackets
- 2 overlap butterfly catches
- 3 strutt hinges
- 1 handle
Amplifier Case
Polypropylene sheets (7mm)
- 2 sheets 54cm x 39 cm
- 4 sheets 17cm x 9.5cm
- 2 sheet 54cm x 9.5cm
Aluminum profiles
- 2 x 56 cm Casemaker
- 2 x 41cm Casemaker
- 2 x 6.6cm Casemaker
- 2 x 56cm Lid hybrid
- 2 x 41cm Lid hybrid
- 2 x 56 cm Lidmaker without slot
- 2 x 41 cm Lidmaker with slot
Fittings
- 8 ball corners
- 4 small corner brackets
- 2 overlap butterfly catches
- 1 handle

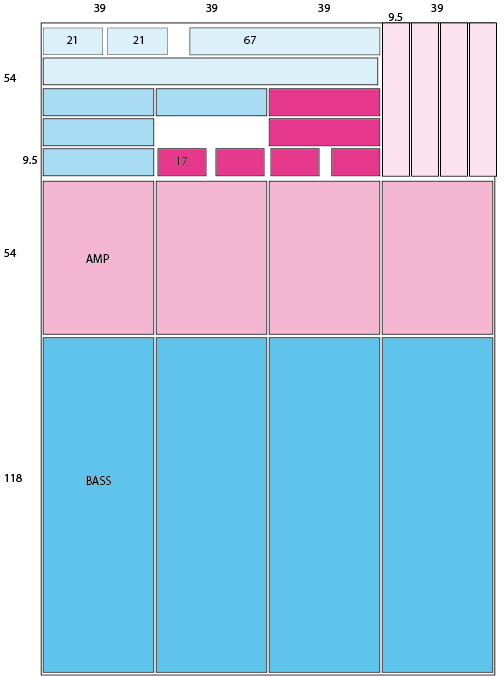

Here’s how we managed to get almost two cases out of a 160 x 230cm PP sheet:

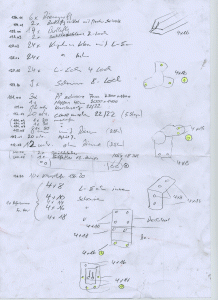

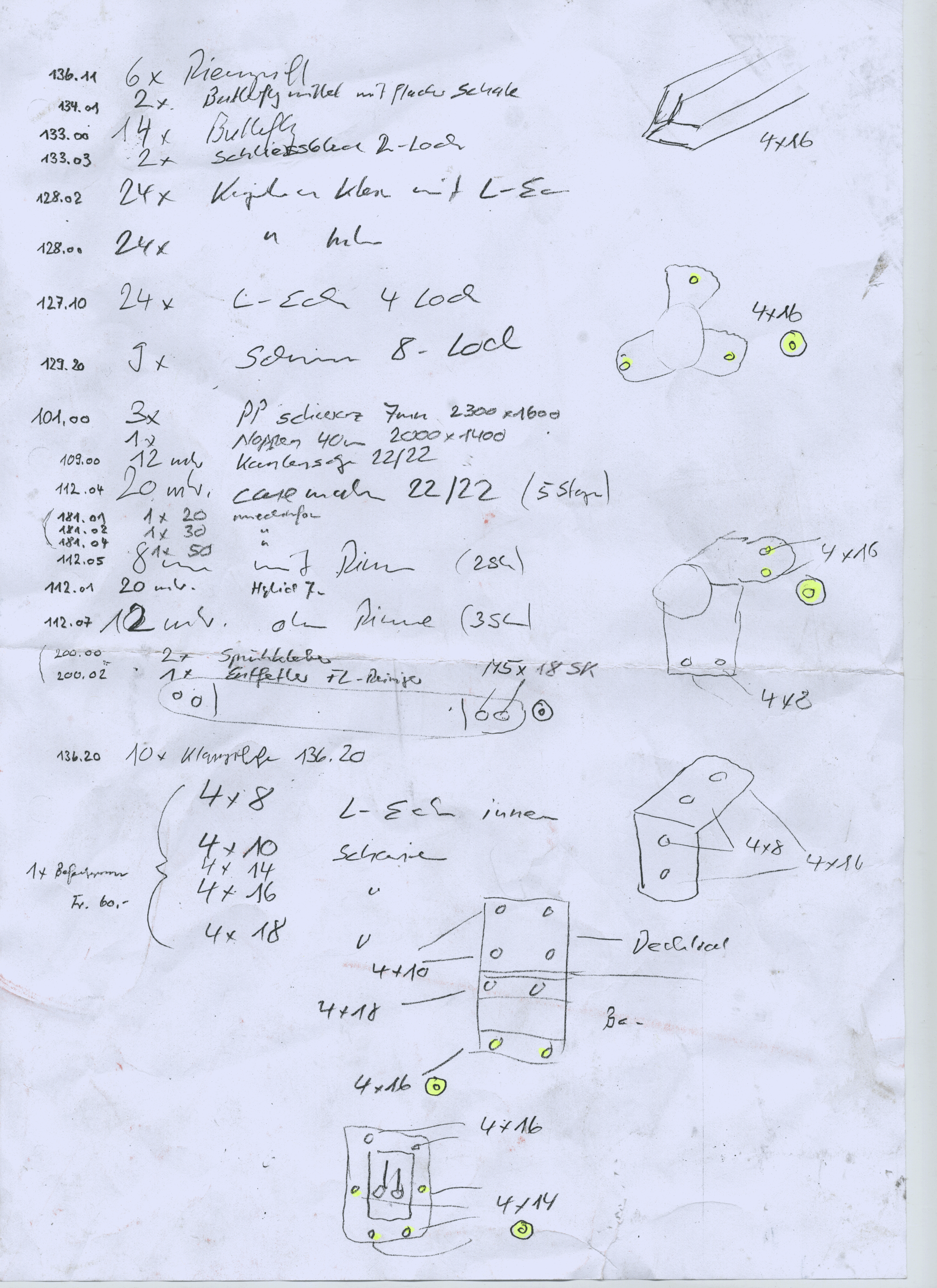

BOM with Rivet-Cheat-Sheet:
